Lockmaster Paddock, 2 Hooks

Description

Product Information
This 2 hook lock is primarily used on composite doors and features a 44mm wide faceplate in either white or brown. Please note that this lock is an unsprung double spindle version and should only be used with sprung handles. The associated handles below are all sprung.

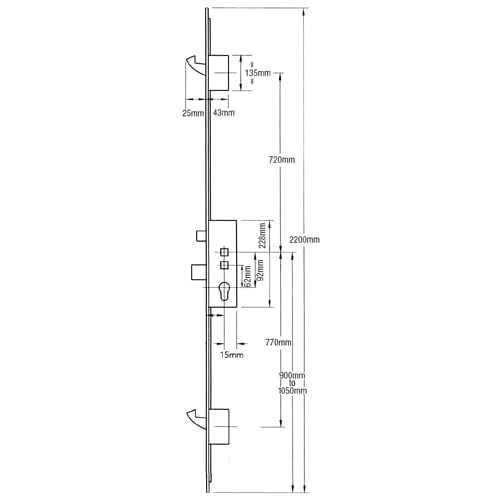

Sizes
Overall length – 2200mm
Distance between hooks – 1490mm
Distance between rollers – 1170mm

Operation
Lever/Lever
Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

Packaging
Loose
