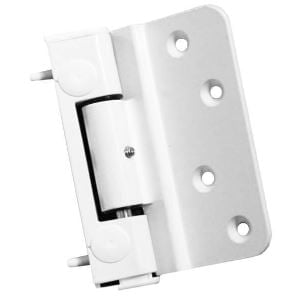

ERA Challenger Composite Door Hinge

Description

 Designed to meet the requirements of PAS 24:2012 as part of a compliant door system, and BS 6375
– Designed specifically for composite and timber doors
– Unique 3D adjustable – Lateral, Height & Compression: Lateral +2mm / -2mm, Height +3mm, Compression +0.5mm / -0.5mm
– Security of the pin is achieved by a concealed grub screw, prevents unauthorised lift off on outward opening doors Self-lubricating bushes
– Self-lubricating bushes
– Suitable for inward and outward opening doors
– Compatible with Aluminium door hinge trim
