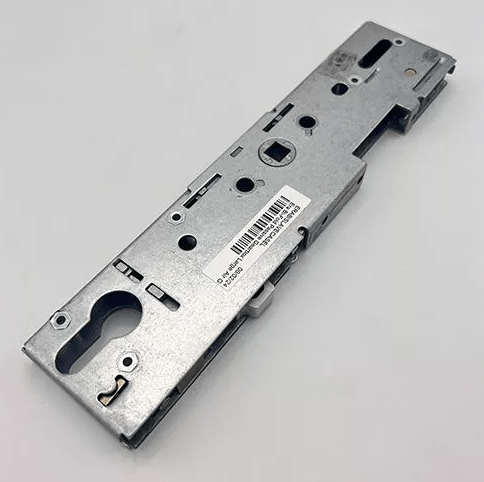

ERA Bi Fold Slave Centre Case

Description

To lock the door

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the additional locking points.

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.

• Manufacturer: ERA

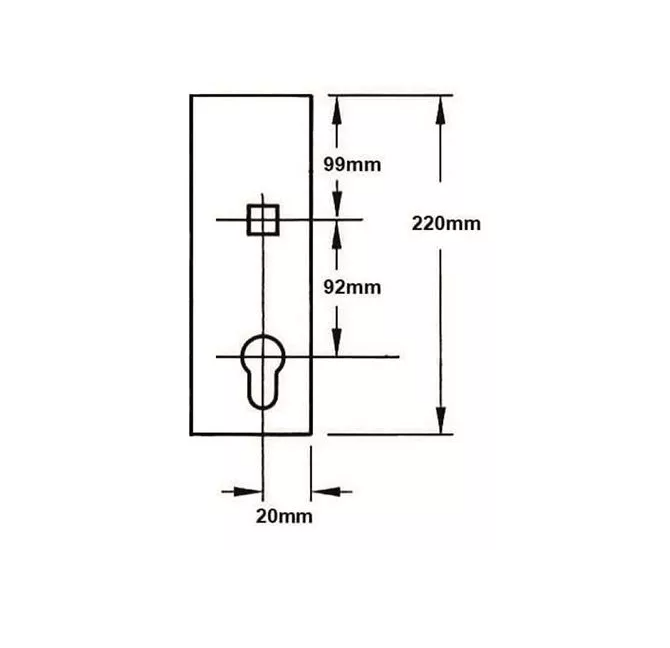

• Backset: 35mm
• Centres PZ: 92mm
• Case Height: 220mm
• Case Width: 55mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Passive lock
• Spindle: Split 8mm
• Operation: Lift Lever or Split Spindle Nightlatch
• Packaging: Supplied in singles
