Avocet Latch Deadbolt 2 Hooks 2 Rollers (Old Brass Ver.)

Description

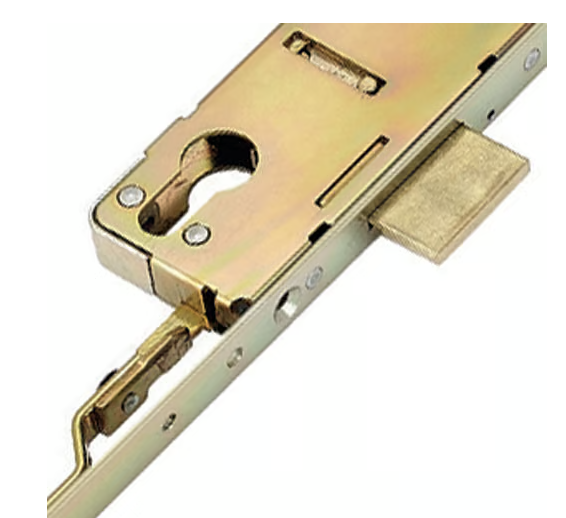

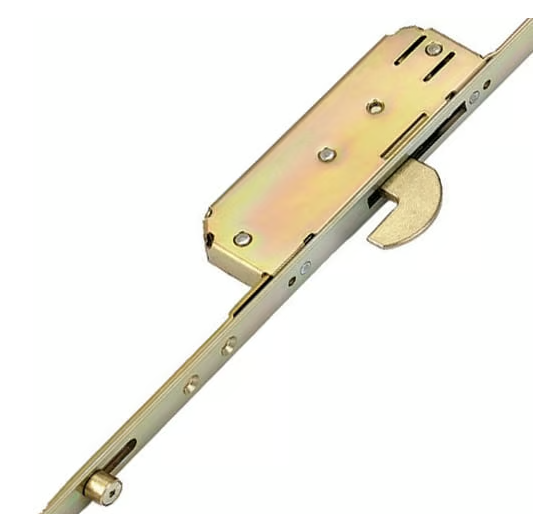

This Avocet multipoint door lock features 2 Rollers, 2 Hooks, 1 Deadbolt & 1 Latch.

The original Avocet 2 hook, 2 roller lock features unique locking positions.

Often known as the yellow version and shouldn’t be confused with the silver AVO352H2RSS which has different roller positions.

All Avocet locks which are designed for PVCu with a flat 16mm faceplate have the ability to accept shootbolts.

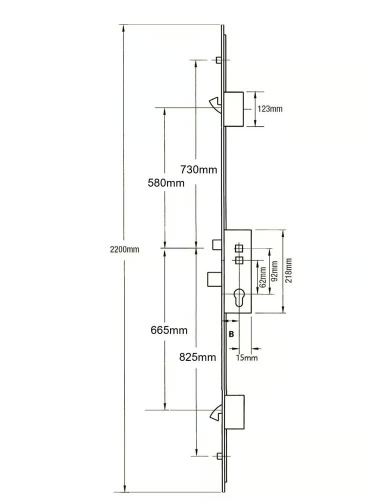

Avocet gearboxes measure 218mm high x backset + 15mm. It’s the large cut out in the top corner, that extends below the latch which makes them unique. This feature can assist with the fitment of handles as the screws are located above the lever.

Avocet gearboxes feature a latch that is 29mm high and a deadbolt that is 34mm high with a distance of 82mm between the top of the deadbolt and the bottom of the latch.
